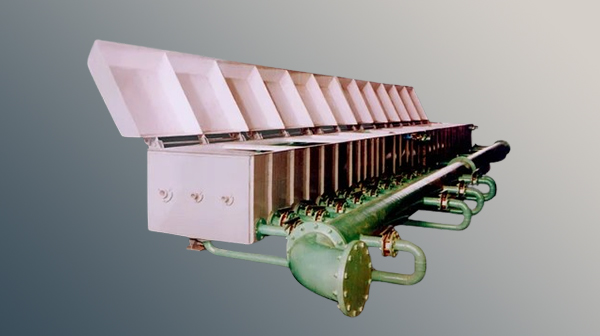

TMT Quenching Box
TMT Quenching Box
TMT quenching boxes provide intensive, controlled water quenching for rebars. Multiple water inlets feed nozzles spaced along the cooling length, delivering the required pressure and flow to achieve the desired hardened rim and ductile core.Technical Specifications:
Advanced water quenching system for superior TMT bar properties.- Capacity: 8-40 mm dia bars; up to 1.2 MT/sec line speed.
- Design: Multi-nozzle high-pressure water jets; uniform surface cooling to 50-100°C while core stays 600-750°C.
- Dimensions: Modular chambers (custom 6-12 m length); SS/MS construction with strippers.
- Features: Adjustable flow/pressure; air nozzles for water removal; self-tempering zone; PLC controls.
- Benefits: Martensitic shell + ductile core; yields 500-600 MPa strength, 15-20% elongation.
Key Features:
- Consistent ring formation and uniform tensile properties along the bar length
- Motorized valves and corrosion-resistant construction
- Robust, closed frame suitable for harsh rolling mill environments
- Suitable for grades Fe415, Fe500, and Fe550
